2012 CAT ap655D Asphalt Paver
$
The CAT AP655D is a high-performance track asphalt paver designed for medium to large-sized paving projects. It offers precision, productivity, and durability, making it an ideal choice for highway, airport, and large commercial paving applications.
-
Manufacturer: Caterpillar
Model: AP655D
Year: 2012
Condition: Used
-
Model: Cat C4.4 ACERT™
Gross Power: 225 hp (168 kW)
Emissions Compliance: Meets U.S. EPA Tier 4 Final standards
-
Tractor Length with Push Roller: 17' 4" (5.28 m)
Overall Machine Length with Screed: Up to 21' 11" (6.68 m), depending on screed type
Transport Width with Screed End Gates: 10' 8" (3.25 m)
Transport Height: 9' 10" (3.00 m)
-
Paving Width Range: 8' to 26' (2.44 m to 8.00 m), depending on screed type
Maximum Paving Depth: 12" (305 mm)
Hopper Capacity: 250 ft³ (7.1 m³)
-
Tractor Only: 38,015 lbs (17,245 kg)
With Screed: 45,900 lbs (20,820 kg)
-
Maximum Paving Speed: 200 feet per minute (61 meters per minute)
Maximum Travel Speed: 9 mph (14.5 km/h)

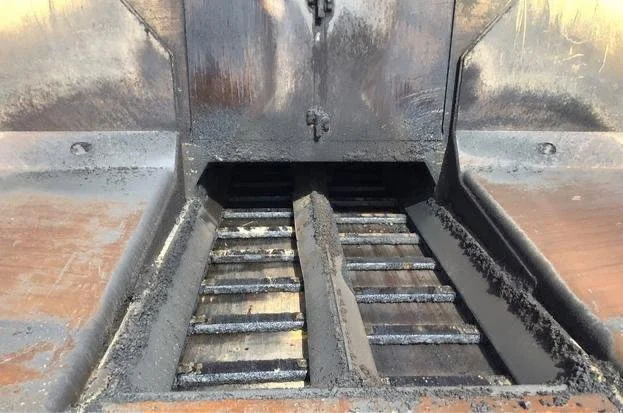

Feed System: Independent conveyor and auger drive system for precise material control
-
Mobil-Trac™ Undercarriage for enhanced traction and flotation
Eco-mode for improved fuel efficiency and reduced operating costs
Advanced Touchscreen Display for intuitive control and monitoring
Dual Operating Stations with adjustable visibility and comfort
Fume Extraction System for a cleaner working environment
Integrated Generator for screed heating, ensuring consistent asphalt compaction
