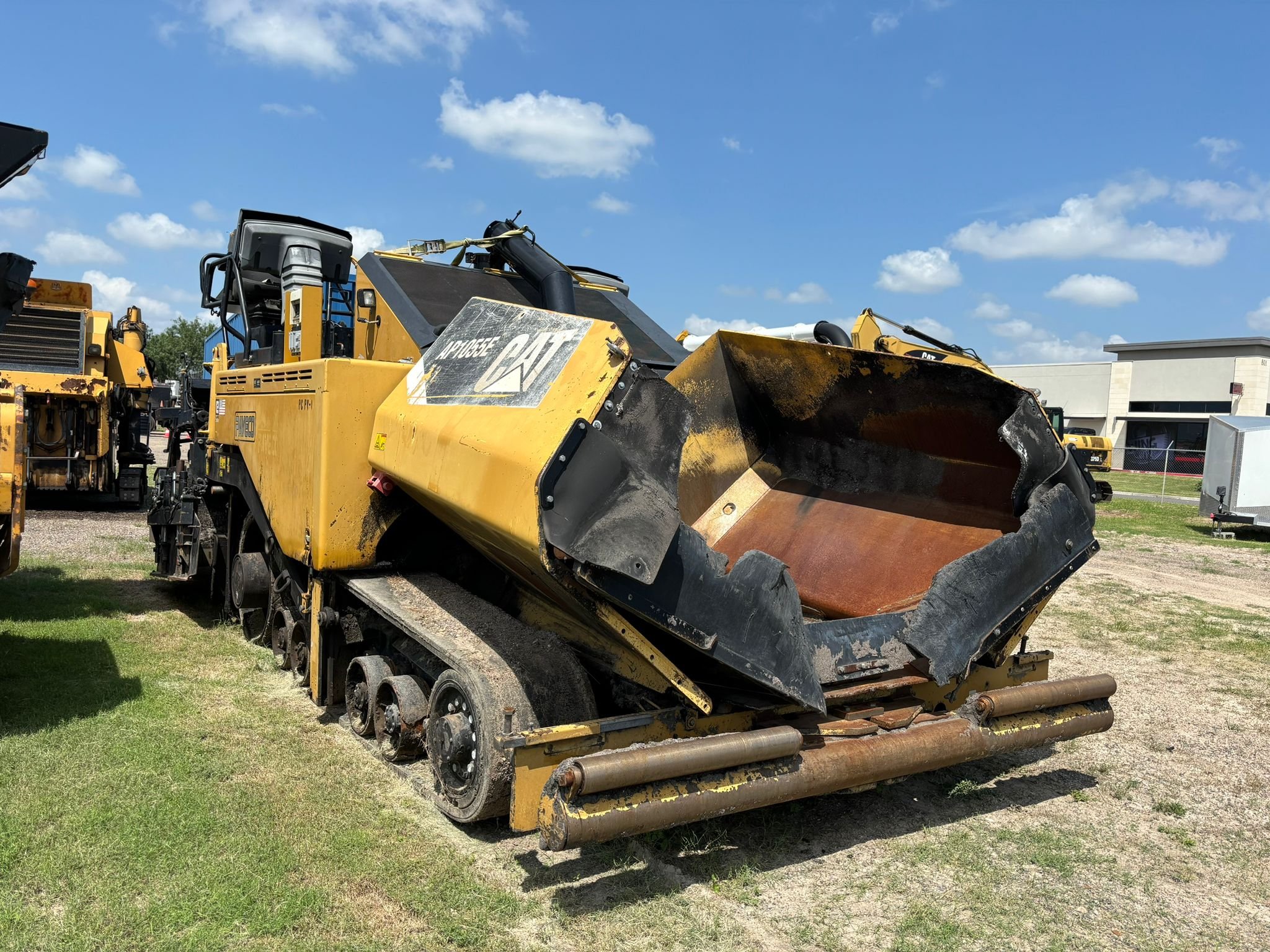

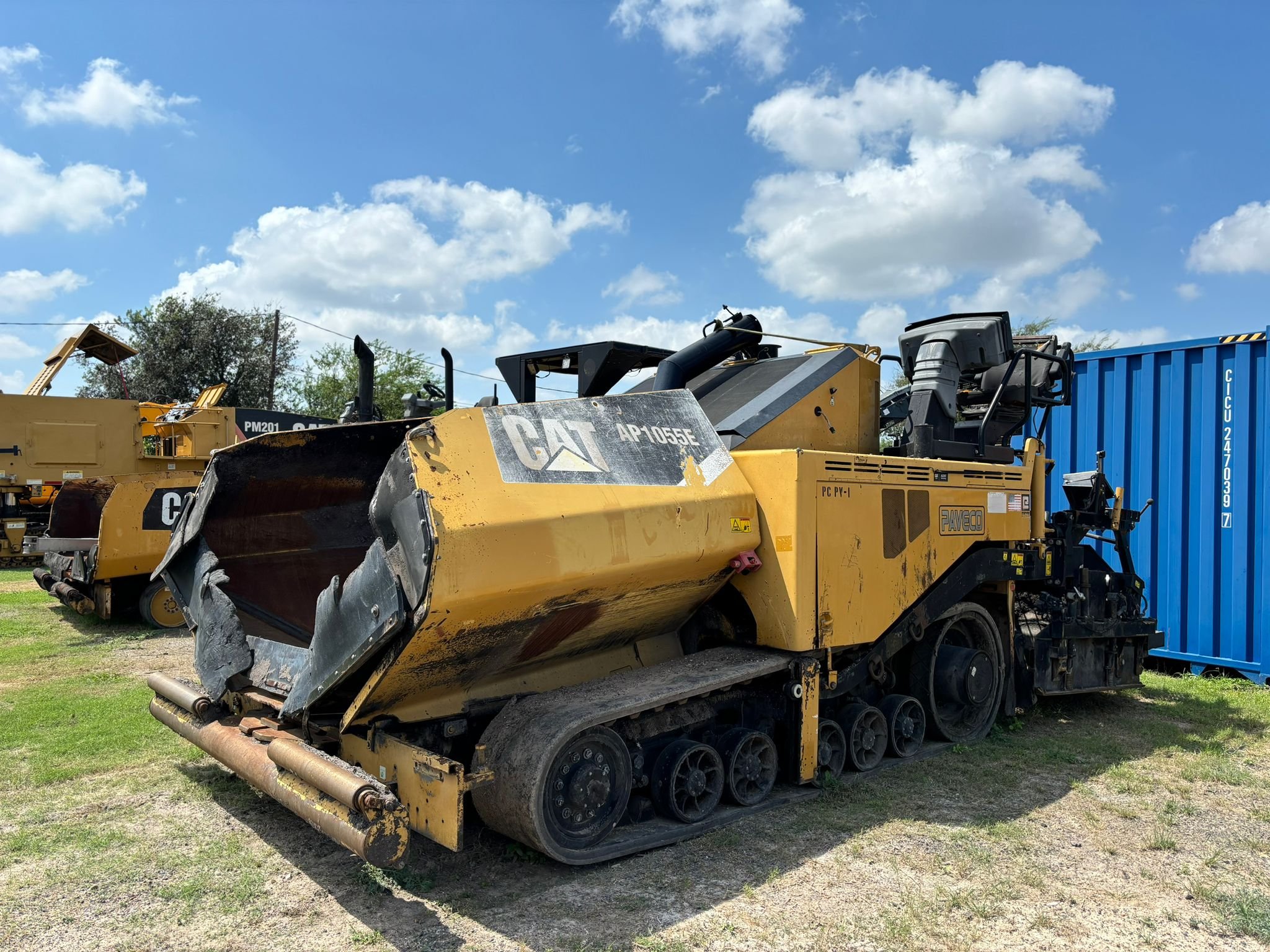

2012 CAT AP1055E Asphalt Paver
$
The 2012 CAT AP1055E Asphalt Paver is a high-performance machine designed for paving and road construction projects. It features a powerful Cat C7.1 engine, advanced material handling system, and electric screed plate heating system for efficient paving. With its Mobil-Trac system and variable speed fan, this paver provides even weight distribution and reduced fuel consumption.
-
Manufacturer: Caterpillar
Model: AP1055E
Year: 2012
Condition: Used
-
Model: Cat C7.1 ACERT™
Gross Power: 225 hp (168 kW)
-
Tractor Length with Push Roller: 16' 3" (4.95 m)
Overall Machine Length with Screed: Up to 21' 8" (6.63 m), depending on screed type
Transport Width with Screed End Gates: 10' 8" (3.24 m)
Transport Height (Fumes Stack and Seat Lowered): 9' 5" (2.87 m)
-
Paving Width Range: 10' to 26' 4" (3.05 m to 8.00 m), depending on screed type
Maximum Paving Depth: 12" (305 mm)
-
Tractor Only: 36,982 lbs (16,810 kg)
With AS4251C Screed: 46,645 lbs (21,158 kg)
-
Hopper Capacity: 7.1 m³ (251 ft³)
Maximum Paving Speed: 200 feet per minute (61 meters per minute)
Maximum Travel Speed: 9 mph (14.5 km/h)
-
Integrated 70 kW Generator for reliable screed heating
Eco-mode for enhanced fuel efficiency
Mobil-Trac™ Undercarriage providing excellent traction and flotation
Dual Operating Stations for improved visibility and control
Ventilation System that directs fumes away from the operator for a more comfortable working environment
