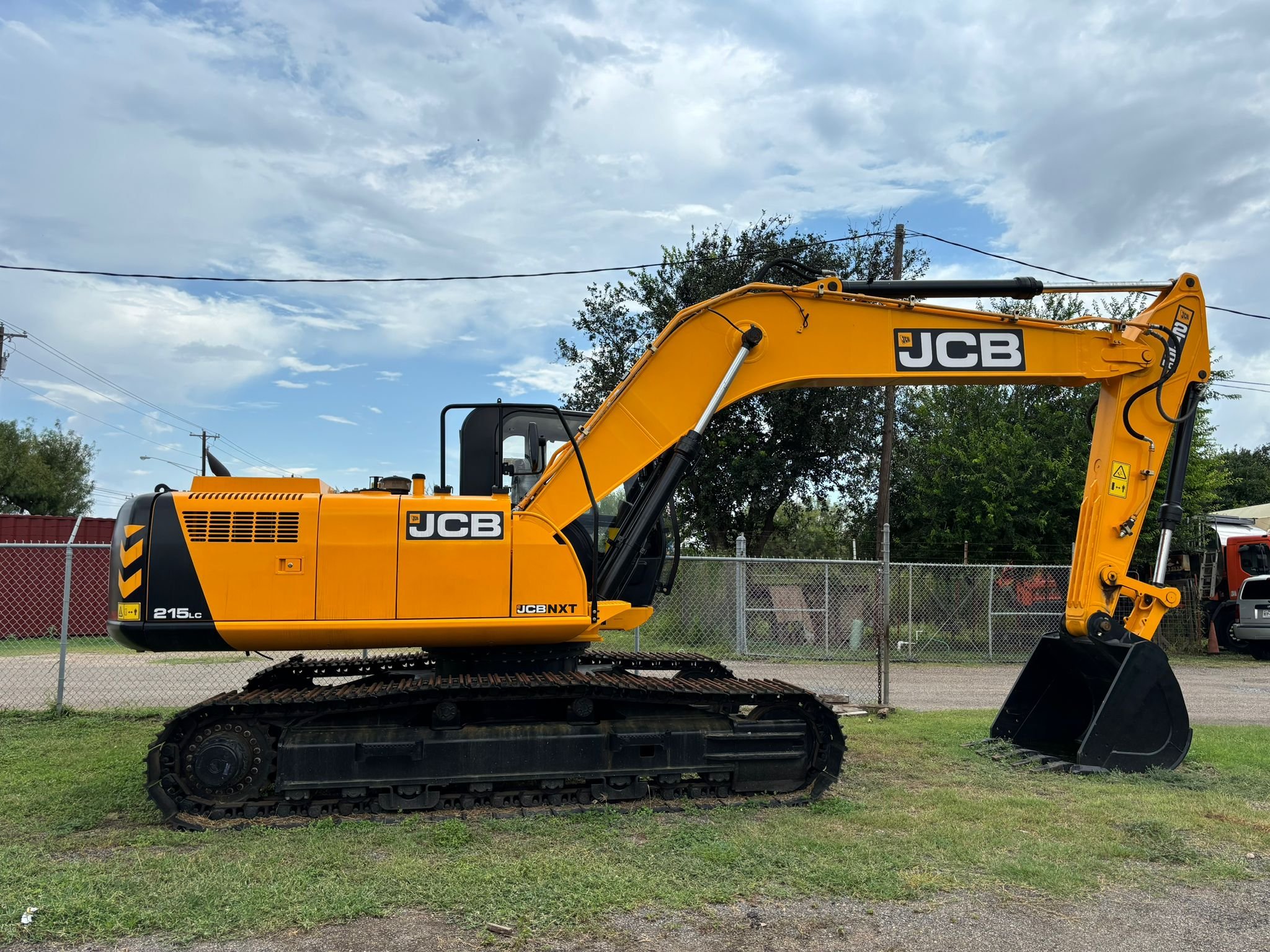

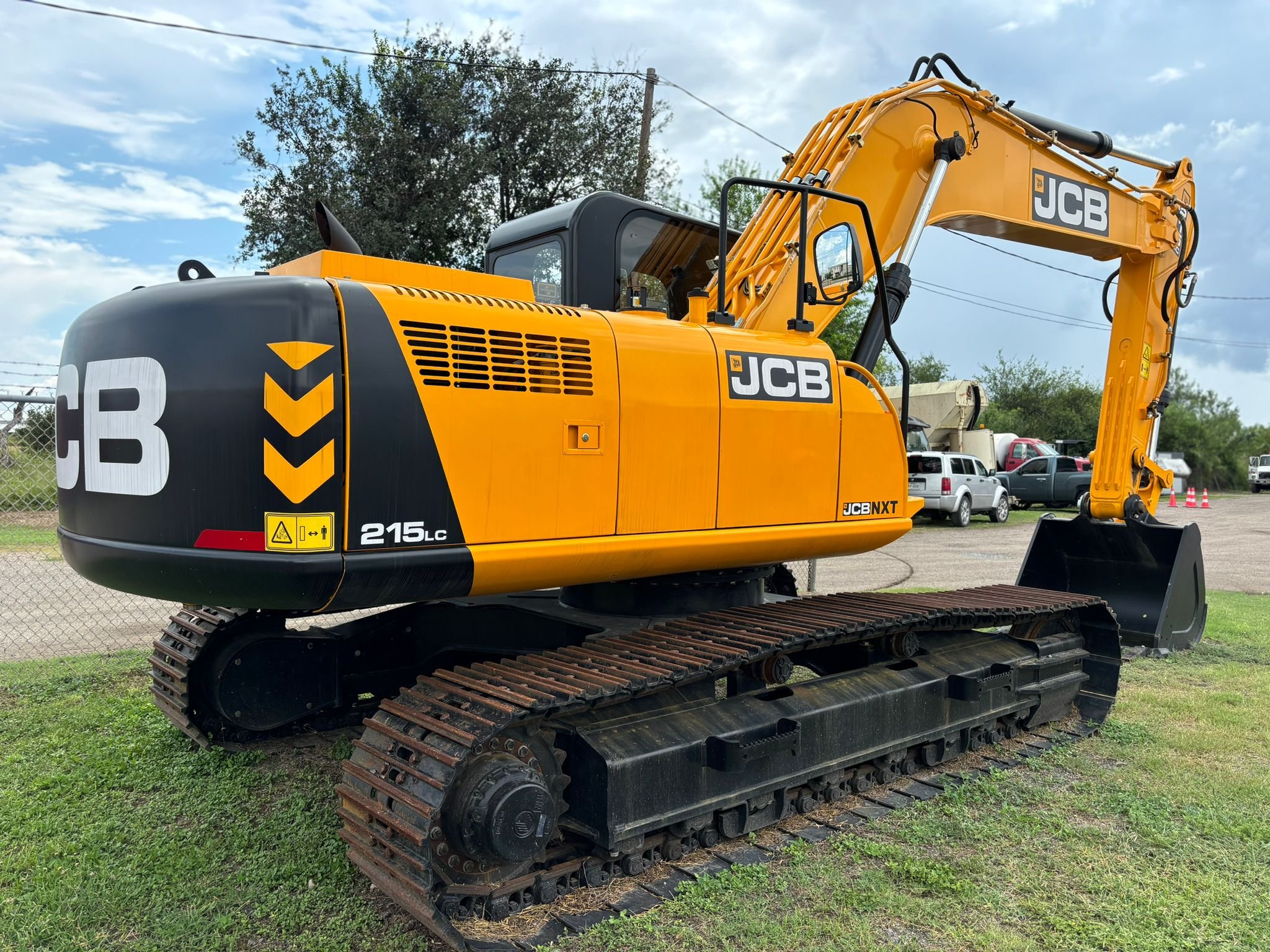

2023 jcb 215lc tracked excavator

Manufacturer: JCB

Model: 215LC

Year: 2023

Condition: Unused

Engine:

• Model: Cummins 6 BT 5.9C

• Type: Water-cooled, 4-stroke, 6-cylinder inline, turbocharged diesel

• Gross Power: 140 hp (104 kW) at 2,000 rpm

• Maximum Torque: 571 Nm at 1,300 rpm

• Displacement: 5.88 liters

• Operating Weight: 21,500 kg

• Overall Length: 9.56 to 9.63 meters

• Overall Width: 2.98 meters

• Overall Height: 3.12 meters

• Ground Clearance: 435 mm

• Track Gauge: 2,390 mm

• Track Shoe Width: 600 mm

• Maximum Digging Depth: 6.14 to 6.73 meters

• Maximum Dumping Height: 6.36 to 6.49 meters

• Maximum Digging Reach: 9.4 to 9.9 meters

• Bucket Capacity: 0.8 to 1.02 cubic meters

• Bucket Digging Force: 13,460 kgf

• Arm Crowding Force: 9,845 to 11,832 kgf

• Main Pump Type: Two variable displacement axial piston pumps

• Maximum Oil Flow: 2 x 220 liters per minute

• Swing Circuit Pressure: 289 bar

• Travel Circuit Pressure: 343 bar

• Fuel Tank: 343 liters

• Hydraulic System: 260 liters

• Hydraulic Tank: 120 liters

• Engine Oil (with filter): 19 liters

• Number of Shoes (each side): 49

• Number of Upper Rollers (each side): 2

• Number of Bottom Rollers (each side): 8

• Maximum Swing Speed: 13.0 rpm

• Minimum Swing Radius: 3.8 to 3.84 meters

• Maximum Travel Speed: 3.8 km/h

• Gradeability: 35° (70%)

• Power Modes: Three modes—Eco (with 8 steps), Power, and Power Plus—for optimized fuel efficiency and performance

• Advanced Telematics: Remote monitoring with real-time status updates and alerts

• Low Maintenance Costs: Hydraulic oil change intervals at 5,000 hours and main hydraulic filter changes at 1,000 hours

• Operator Comfort: Air-conditioned cab, removable front lower glass for visibility and ventilation, and vibration absorption technology with six viscous mounts
